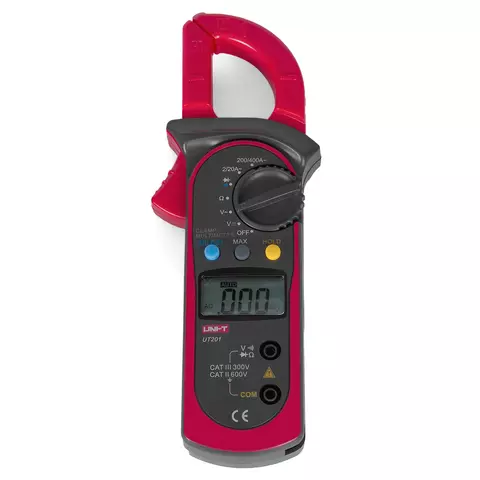

Digital Clamp Meter UNI-T UT201

id: 855702
0.8 kg Warranty: 24 month (s)
The reliable digital clamp meter which measures AC and DC voltage, AC current, resistance and performs diode check and continuity test.
Discontinued
Find substitute
Discontinued
Find substitute
Add to wishlist
Compare
Compare
Impossible to estimate the shipping cost
Overview
Specifications
Substitution
Video
Delivery
Payment
Warranty
Overview

UNI-T UT201 is reliable digital clamp meter that is designed for measuring AC/DC voltage and AC current, resistance, and performing a diode check and continuity test.

Features

  • Measuring functions:
    • AC/DC voltage
    • AC current
    • resistance
    • continuity test (with buzzer)
    • diode test
  • Data Hold function
  • Low battery display

Techical Specifications

Display 1999 digit LCD, 35.6 × 18 mm
DC voltage Range 200 mV / 2 V / 20 V / 200 V / 600 V
Accuracy ±(0.8%+1)
AC voltage Range 2 V / 20 V / 200 V / 600 V
Accuracy ±(1.2%+5)
AC current Range 2 A / 20 A / 200 A / 400 A
Accuracy ±(1.5%+5)
Resistance Range 200 Ω/ 2 kΩ / 20 kΩ / 200 kΩ / 2 MΩ / 20 MΩ
Accuracy ±(1%+2)
Power 3 V battery (AAA × 2)
Dimensions (H × W × D) 210 × 75.6 × 30 mm
Weight 220 g

Video

Youtube video

You'll find even more video reviews in the Video tab. Go and check it out!

Package Contents

  • UNI-T UT201 clamp meter (1 pc.)
  • Test lead (1 pair)
  • Carrying case (1 pc.)
  • User manual (1 pc.)

Note! Batteries are not included in the package.

Specifications
Digit Capacity
  • 1999
Type
  • for AC
Jaw diameter
  • diameter 28 mm
DC Voltage
  • up to 600 V
AC Voltage
  • up to 600 V
Resistance
  • up to 20 MOhm
Capacitance
  • does not measure the capacitance
DC
  • does not measure the DC
Frequency
  • does not measure the frequency
Temperature
  • no
Power
  • no
Duty cycle
  • no
True RMS
  • no
Backlight
  • no
PC connection
  • no connection to PC
Diode test
  • yes
Analog bar graph
  • no
Continuity test
  • yes
Three-phase voltage measurement
  • no
Three-phase current measurement
  • no
AC
  • up to 400 A
NCV
  • no
Substitution
Video
Youtube video
Youtube video
Delivery
Payment
Warranty
Digital Clamp Meter UNI T UT201 - Short description
