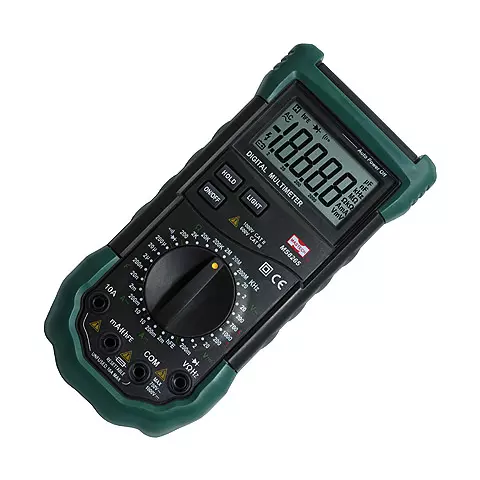

Digital Multimeter MASTECH MS8265

id: 11416
Digital Multimeter MASTECH MS8265
Overview
Description
Specifications
Video
Delivery
Payment
Warranty
Price coming soon
Contact
sales team
Overview
Rate product
0.7 kg Warranty: 6 months
Measures direct and alternating current, voltage, resistance, capacitance, frequency and transistors current gain rate. Read more
Price coming soon
Contact
sales team
Compare
Compare
Price coming soon
Contact
sales team
Impossible to estimate the shipping cost

You may also like

Digital Multimeter UNI T UT55
Bestseller
Add to wishlist
ID: 834629
Digital Multimeter UNI-T UT55
5 (1)
USD 31.14
Add to wishlist
Add to cart
Digital multimeter for measuring AC/DC voltage, AC/DC current, resistance, capacitance, frequency, temperature, as well as diode, transistor and continuity tests.
Availability in stock: HK
Shipping cost
ID: 834629 0.82 kg
Description

Large five-digits LCD of digital multimeter Mastech MS8265 distinguishes this measuring device from the other similar tools. The multimeter ensures high measurement accuracy, minimal inaccuracy and conforms to the IEC1010-1 standard CAT III 600V and CAT II 1000V. By means of digital multimeter Mastech MS8265 one can test diodes and identify wires.

Video

Youtube video

You'll find even more video reviews in the Video tab. Go and check it out!

Technical Specifications

Counts 19999
DC voltage  200mV ±0.05%, 2/20/200V ±0.1%, 1000V ±0.15%
AC voltage 2V±0.5%, 20/200V ±0.6%, 750V ±0.8%
DC current  2mA ±0.5%, 200mA ±0.8%, 10A ±2.0%
AC current  2mA±0.8%, 200mA ±1.2%, 10A ±2.5%
Frequency 20Hz ±1.5%
Resistance 200Ω ±0.5%, 2/20/200/2MΩ± 0.3%, 20MΩ ±0.5%, 200MΩ ±5%
Transistors current gain rate up to 1000
Capacitance 20/200nF/2/20/200µF ±4.0%
Conductivity wire identification yes
Diode, transistor test yes
Automatic power-off yes
Data Hold yes
Display illumination yes
Power source 6F22(9V)
Dimensions 195 x 92 x 55 mm
Specifications
Type
  • digital
Range Selection
  • manual range
Digit Capacity
  • 19 999
DC Voltage
  • up to 1000 V
AC Voltage
  • up to 750 V
Resistance
  • up to 200 MOhm
Capacitance
  • up to 200 μF
Frequency
  • up to 20 kHz
DC
  • up to 10 A
AC
  • up to 10 A
Inductance
  • no
Temperature
  • no
Power
  • no
Duty cycle
  • no
True RMS
  • no
Backlight
  • yes
PC connection
  • no connection to PC
Diode test
  • yes
Analog bar graph
  • no
Transistor check
  • yes
Continuity test
  • yes
Battery Testing
  • no
