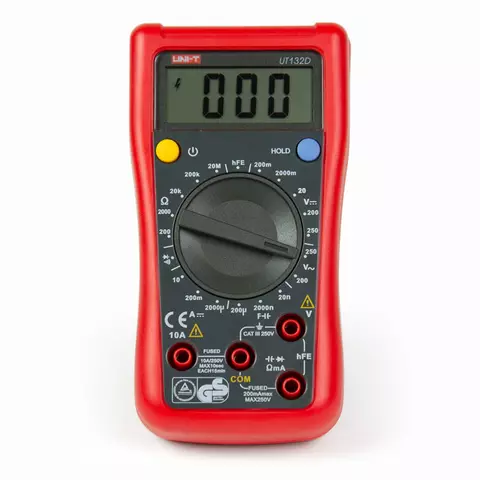

Digital Multimeter UNI-T UT132D

id: 845320
0.395 kg Warranty: 24 month (s)
Digital multimeter which measures AC/DC voltage, DC current, resistance and can be used for continuity and diode tests.
Discontinued
Find substitute
Discontinued
Find substitute
Add to wishlist
Compare
Compare
Impossible to estimate the shipping cost
Overview
Specifications
Substitution
Video
Delivery
Payment
Warranty
Overview

This UNI-T UT132D digital multimeter measures AC/DC voltage, DC current, resistance and can be used for continuity and diode tests.

Features

  • Measurement functions:
    • AC/DC voltage
    • DC current
    • capacitance
    • resistance
    • continuity test
    • diode test
  • Data hold
  • Low battery indication

Video

Youtube video

You'll find even more video reviews in the Video tab. Go and check it out!

Technical Specifications

Display 3999 digit LCD, backlight, 60 × 54 mm
DC voltage Range 200 mV / 2000 mV / 20 V / 200 V / 250 V
Accuracy ±(0.8%+2)
AC voltage Range 200 V / 250 V
Accuracy ±(1.2% +3)
DC current Range 2000 uA / 200 mA / 10 A
Accuracy ±(1,2% +2)
Resistance Range 200 Ω / 2000 Ω / 20 kΩ / 200 kΩ / 20 MΩ
Accuracy ±(0,8% +5)
Capacitance Range 20 nF / 2000 nF / 200 uF
Accuracy ±(5% +5)
Power 9 V battery (6F22)
Dimensions 137 × 72 × 35 mm
Weight 0.200 kg

Package Contents

  • Multimeter UNI-T UT132D (1 pc.)
  • Test lead (1 pc.)
  • Battery (1 pc.)
  • User manual (1 pc.)
Specifications
Type
  • digital
Measured Values
  • DC voltage
  • AC voltage
  • DC
  • resistance
  • capacitance
Additional Functions
  • acoustic continuity test
  • data hold
  • diode test
  • transistors test
Range Selection
  • manual range
Digit Capacity
  • 1999
DC Voltage
  • up to 250 V
AC Voltage
  • up to 250 V
Resistance
  • up to 20 MOhm
Capacitance
  • up to 200 μF
DC
  • up to 10 A
AC
  • does not measure the AC
Frequency
  • does not measure the frequency
Inductance
  • no
Temperature
  • no
Power
  • no
Duty cycle
  • no
True RMS
  • no
Backlight
  • no
PC connection
  • no connection to PC
Diode test
  • yes
Analog bar graph
  • no
Transistor check
  • no
Continuity test
  • yes
NCV
  • no
Battery Testing
  • no
