Digital Multimeter UNI-T UT90C

id: 840024
Digital Multimeter UNI-T UT90C
Overview
Description
Specifications
Video
Delivery
Payment
Warranty
Discontinued
Find substitute
Overview
0.6 kg Warranty: 24 months
Measures AC/DC voltage, AC/DC current, resistance, frequency, capacitance and can be used for diode and continuity tests.
Discontinued
Find substitute
Compare
Compare
Discontinued
Find substitute
Impossible to estimate the shipping cost

You may also like

Digital Multimeter UNI T UT136C+
Add to wishlist
Digital Multimeter UNI-T UT136C+
USD 18.86
Add to wishlist
Add to cart
Measures AC/DC voltage and current, resistance, capacitance, frequency, temperature, hFE (transistor measurement), and also performs diode and transistor tests.
Availability in stock: HK
Shipping cost
ID: 883716 0.5 kg
Digital Multimeter UNI T UT136B+
Add to wishlist
Digital Multimeter UNI-T UT136B+
USD 17.59
Add to wishlist
Add to cart
Measures up to 1000 V and 10 A DC/AC voltage and current. Large LCD screen and 4 x/s sampling rate provide users with more accurate readings.
Availability in stock: HK
Shipping cost
ID: 883718 0.5 kg
Digital Multimeter UNI T UT139C
Add to wishlist
Digital Multimeter UNI-T UT139C
USD 39.21
Add to wishlist
Add to cart
True RMS digital multimeter which measures AC/DC voltage, AC/DC current, resistance, capacitance, frequency, temperature and can be used for continuity and diode tests.
Availability in stock: HK
Shipping cost
ID: 844702 0.55 kg
Digital Multimeter UNI T UT61B+
Bestseller
Add to wishlist
Digital Multimeter UNI-T UT61B+
USD 42.60
Add to wishlist
Add to cart
True RMS multimeter used to measure AC/DC voltage, AC/DC current, resistance, frequency, capacitance, duty cycle, and also to test diode and continuity.
Bestseller
Availability in stock: HK
Shipping cost
ID: 898457 0.8 kg
Description

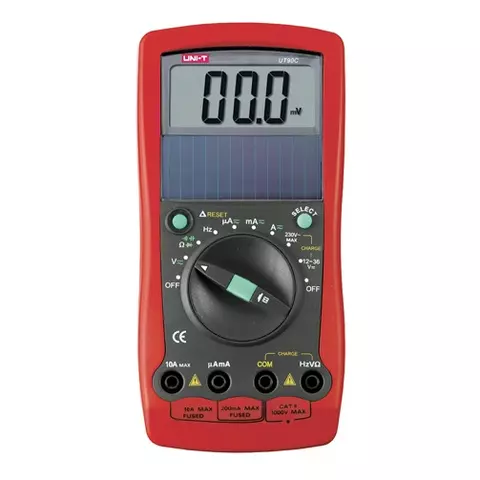

UNI-T UT90C is a digital multimeter is designed for measuring AC/DC current, AC/DC voltage, resistance, frequency and can be used for continuity and diode tests.

User Manuals

Download UNI-T UT90C Digital Multimeter User Manual

Features

  • Measurement functions:
    • AC/DC voltage
    • AC/DC current
    • capacitance
    • resistance
    • frequency
    • continuity test
    • diode test
  • Auto ranging
  • Low battery indication

Video

Youtube video

You'll find even more video reviews in the Video tab. Go and check it out!

Technical Specifications

Display 3999 digit LCD, 60 × 26 mm
DC voltage Range 400 mV / 4 V / 40 V / 400 V / 1000 V
Accuracy ±(0.8%+1)
DC current Range 400 μA / 4000 μA / 40 mA / 400 mA / 4 A / 10 A
Accuracy ±(1%+2)
AC current Range 400 μA / 4000 μA / 40 mA / 400 mA / 4 A / 10 A
Accuracy ±(1.5%+5)
Resistance Range 400 Ω / 4 kΩ / 40 kΩ / 400 kΩ / 4 MΩ / 40 MΩ
Accuracy ±(1%+2)
Capacitance Range 40 nF / 400 nF / 4 uF / 40 uF / 100 uF
Accuracy ±(3%+5)
Frequency 10 Hz -10 MHz
Power 9 V battery (6F22)
Dimensions 179 × 88 × 39 mm
Weight 340 g

Package Contents

  • Multimeter UNI-T UT90C (1 pc.)
  • Test leads (1 pair)
  • Battery (1 pc.)
  • User manual (1 pc.)
Read more
Description

UNI-T UT90C is a digital multimeter is designed for measuring AC/DC current, AC/DC voltage, resistance, frequency and can be used for continuity and diode tests.

User Manuals

Download UNI-T UT90C Digital Multimeter User Manual

Features

  • Measurement functions:
    • AC/DC voltage
    • AC/DC current
    • capacitance
    • resistance
    • frequency
    • continuity test
    • diode test
  • Auto ranging
  • Low battery indication

Video

Youtube video

You'll find even more video reviews in the Video tab. Go and check it out!

Technical Specifications

Display 3999 digit LCD, 60 × 26 mm
DC voltage Range 400 mV / 4 V / 40 V / 400 V / 1000 V
Accuracy ±(0.8%+1)
DC current Range 400 μA / 4000 μA / 40 mA / 400 mA / 4 A / 10 A
Accuracy ±(1%+2)
AC current Range 400 μA / 4000 μA / 40 mA / 400 mA / 4 A / 10 A
Accuracy ±(1.5%+5)
Resistance Range 400 Ω / 4 kΩ / 40 kΩ / 400 kΩ / 4 MΩ / 40 MΩ
Accuracy ±(1%+2)
Capacitance Range 40 nF / 400 nF / 4 uF / 40 uF / 100 uF
Accuracy ±(3%+5)
Frequency 10 Hz -10 MHz
Power 9 V battery (6F22)
Dimensions 179 × 88 × 39 mm
Weight 340 g

Package Contents

  • Multimeter UNI-T UT90C (1 pc.)
  • Test leads (1 pair)
  • Battery (1 pc.)
  • User manual (1 pc.)
Specifications
Type
  • digital
Measured Values
  • DC voltage
  • AC voltage
  • AC
  • DC
  • resistance
  • capacitance
  • frequency
Additional Functions
  • acoustic continuity test
  • data hold
  • diode test
Range Selection
  • auto range
Digit Capacity
  • 3999
DC Voltage
  • up to 1000 V
AC Voltage
  • up to 750 V
Resistance
  • up to 40 MOhm
Capacitance
  • up to 100 μF
Frequency
  • up to 10 MHz
DC
  • up to 10 A
AC
  • up to 10 A
Inductance
  • no
Temperature
  • no
Power
  • no
Duty cycle
  • no
True RMS
  • no
Backlight
  • no
PC connection
  • no connection to PC
Diode test
  • yes
Analog bar graph
  • no
Transistor check
  • no
Continuity test
  • yes
Battery Testing
  • no
Video
Youtube video
Youtube video
