Overview
7 kg 110, 220 V Warranty: 24 months
Dual-channel digital oscilloscope with 100 MHz bandwidth, 1 GSa/s real-time sample rate, 50 GSa/s equivalent sample rate, 2 × 512 k memory. Read more
You may also like
Description

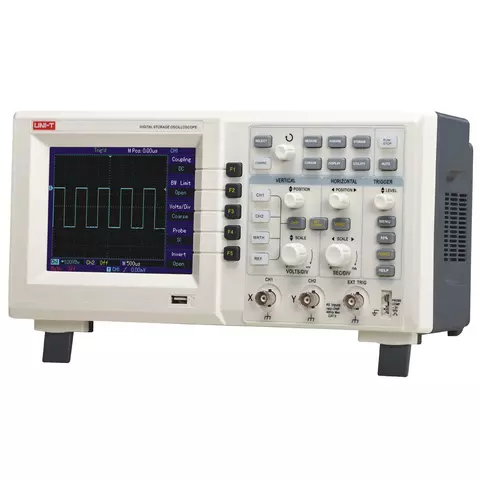

UNI-T UTD2102CE Digital Oscilloscope is a compact and lightweight dual-channel digital oscilloscope (100 MHz). Convenient 5.7-inch color liquid-crystal display of the oscilloscope ensures bright and sharp waveform representation.
UNI-T UTD2102CE Digital Oscilloscope is a good choice for production tests, R&D, design and all other applications involving testing and troubleshooting, as well as education and training.
UNI-T UTD2102CE Digital Oscilloscope Features
- Bandwidth: 100 MHz.
- 2 analog channels.
- Real-time sample rate: 1 GSa/s.
- Memory: 2 × 512 k.
- 28 auto measurements.
- Special digital filter and waveform recorder.
- 5.7-inch color LCD.
- Vertical sensitivity: 2 mV/div – 5 V/div.
- Versatile trigger modes: Edge, Pulse, Video and Alternate.
- Math functions: Add, Subtract, Multiply, Divide, FFT.
- Standard interface: USB Host & Device, to support USB flash memory and USB printer.
- Optional interface: LAN.
- Compact design, small dimensions, light weight.
UNI-T UTD2102CE Digital Oscilloscope Technical Specifications
| Bandwidth | 100 MHz | |
| Channels | 2 | |
| Real time sample rate | 1 GSa/s | |
| Equivalent sample rate | 50 GSa/s | |
| Memory | 2 × 512 k | |
| Vertical sensitivity range | 2 mV/div – 5 V/div | |
| Rise time | ≤ 3.5 ns | |
| Time base range | 5 ns/div – 50 s/div | |
| Math | Add, Subtract, Multiply, Divide, FFT | |
| Trigger modes | Edge, Pulse, Video and Alternate | |
| Storage | 10 setups and 10 waveforms (.bmp, .csv) | |
| General Characteristics | ||
|---|---|---|
| Display | 5.7" (145 mm) color LCD (320 × 240), 64 k | |
| Interface | Standard: USB Host / USB Device; Pass/Fail Optional: LAN |
|
| Power source | 100–240 V AC RMS, 45 Hz – 440 Hz, CAT II | |
| Weight | 2.5 kg | |
| Dimensions | 320 × 150 × 130 mm | |
UNI-T UTD2102CE Digital Oscilloscope User Manual
Download UNI-T UTD2102CE Digital Oscilloscope User Manual & Software Installation Guide.
UNI-T UTD2102CE Digital Oscilloscope Sofware
Download UNI-T UTD2102CE Digital Oscilloscope Sofware.
Video
{{token,260,name}}UNI-T UTD2102CE Digital Oscilloscope Package Contents
- UNI-T UTD2102CE Digital Oscilloscope Unit (1 pc.)
- Probes (2 pcs.)
- 1x
- 10x
- Power Cord (1 pc.)
- User Manual & Software Installation Guide (1 pc.)
