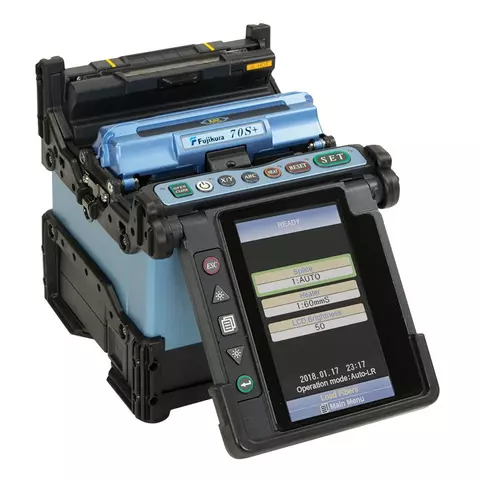

Fusion Splicer Fujikura 70S+ “Kit-A” Standard

id: 886106
Fusion Splicer Fujikura 70S+ “Kit-A” Standard
Overview
Description
Video
Delivery
Payment
Warranty
Discontinued

Overview

Made in Japan
18 kg Warranty: 24 months
Core-to-core alignment single fiber splicer designed for splicing single-count optical fibers for telecommunication use, PON/FTTx networks, etc. Splicing time: 6 s, heating time: 9 s. Includes Fujikura CT-08A Fiber Optic Cleaver. Read more
Discontinued
Discontinued
Impossible to estimate the shipping cost

You may also like

Description

Fujikura 70S=80S

Fujikura 70S+ Fusion Splicer is core-to-core alignment single fiber splicer, which is designed for splicing single-count optical fibers: SM (G.652/657), MM (G.651), DSF (G.653), NZDSF (G.655) for telecommunication use, PON/FTTx networks, etc. Splicing takes only 6 seconds, and heating takes only 9 seconds.

The device is optimized for splicing under severe weather conditions, it is protected from stress and shock. It may be powered from 110/220 V AC, or using a battery (included). For user comfort the package contains a convenient working table, where you may place the needed tools.

Features

  • Reduced splicing time – 6 seconds only.
  • Reduced heating time – 9 seconds only.
  • Wireless connection via Bluetooth.
  • Splices all known types of fibers.
  • Fiber core alignment.
  • Typical average splice loss for single mode cable with G.652D fiber is only 0.02 dB.
  • Increased electrode lifetime – up to 3000 splicing cycles with one set, without splicing quality loss.
  • Battery life increased up to 200 full splicing/heating cycles.
  • Rotary color anti-glare LCD 4.73", high contrast and vividness.
  • Simultaneous display of X and Y axes.
  • May splice SC, LC, MPO connectors.
  • Automatic: wind-protective lid, heater, fiber holders.
  • Increased water, dust and shock resistance, may be used under severe environment conditions.
  • Automatic arc calibration.
  • Battery BTR-09 is included.
  • New comfortable carrying case, optimized for quick operation start.
  • The case may be used as a working table.
  • Operation manual is installed into the splicer.
  • Software update option.
  • 2 years of full warranty with the device replacement.

Technical Specifications

  Fujikura 70S+ Fujikura 80S+
Splicing / Heating
Typical Splicing Time 7 sec (for SM)
Typical Heating Time 14 sec (for 60 mm sleeves)
Applicable Fibers SMF (ITU-T G.652)
MMF (ITU-T G.651)
DSF (ITU-T G.653)
NZDSF (ITU-TG.655)
CSF (ITU-T G.654)
Fiber with low sensitivity to bends (ITU-T G.657)
Erbium-doped fiber
Cladding Diameter 80 μm – 150 μm
Coating Diameter 100 μm – 1,000 μm
Fiber Cleave Length 5 – 16 mm
Typical Average Splice Loss 0,02 dB (SMF)
0,01 dB (mmF)
0,04 dB (DSF)
0,04 dB (NZDSF)
Splice Loss Estimate core
angular offset
fiber deformation
Return Loss ≤60 dB
Compatible Protection Sleeves 60 mm
40 mm
micro
Splicing Modes 100 user programmable
Heating Modes 30 (10 preset + 20 user programmable)
Internal Memory up to 2000 splice results and parameters
Additional Options
Mechanical Proof Test stretching force 1.96 – 2.25 N
Electrodes lifetime 3000 cycles
External Interfaces USB 1.1, Mini-DIN
Data Display
Screen type rotary anti-glare LCD
Screen Size 4.73"
Colour Yes
Viewing Yes (2 CMOS cameras)
Magnification х200
Power Supply
Adapter ADC-19 110/220 V AC
Battery BTR-09 4000 mAh
Battery Cycles up to 200 splicing/heating cycles
Operation Conditions
Temperature –10 ~ +50°C
Altitude above sea level 0 ~ 5000 m
RH 0 ~ 95%
Max. wind velocity 34 mph / 15 m/s
Storage Conditions
Temperature –40 ~ +80 °C
RH 0 ~ 95%
Protection
Shock Resistance height: 76 cm, any surface
Dust Resistance dust particles from 0.1 to 500 μm
Rain Resistance 10 mm/h for 10 min
Dimensions & Weight
Width 150 mm
Length 159 mm
Height 146 mm
Weight 2,5 kg (with adapter ADC-18)
2,7 kg (with battery BTR-09)

Additional Information

Download Fujikura 70S+ Data Sheet.

Download Fujikura 70S+ Operating Manual.

Video

Youtube video

Package Contents

  • Fusion Splicer Fujikura 70S+ — 1 pc.
  • Fiber Optic Cleaver Fujikura CT-08A — 1 pc.
  • Detachable Battery BTR-09 — 1 pc.
  • Battery charge cord DCC-18 — 1 pc.
  • Power adapter/Charger adapter ADC-18 — 1 pc.
  • Power cord ACC-XX — 1 pc.
  • Spare electrodes
  • USB cable USB-01 — 1 pc.
  • J-plate JP-05 — 1 pc.
  • Alcohol dispenser AP-01 — 1 pc.
  • Screwdriver SD-01 — 1 pc.
  • CD with Data Connection Software and Video Instruction Manual — 1 pc.
