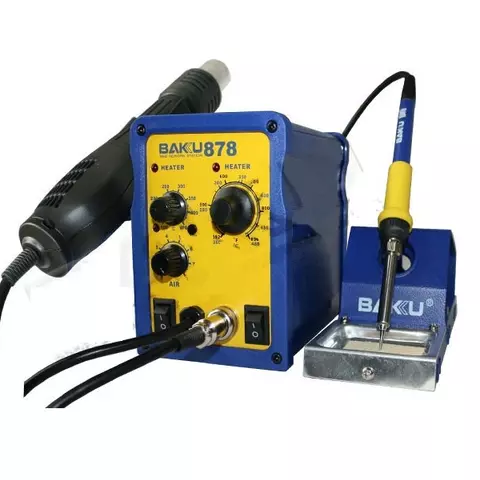

BAKU BK-878 is a powerfull ESD-safe hot air soldering station that is designed for soldering and desoldering operations with the full range of SMD components, including DIP, SOIC, CHIP, QFP, BLCC, BGA, etc. BAKU BK-878 hot air soldering station temperature range is 100 - 450 ºC.
Features
- Fast heating.
- Built-in thermal protection.
- Antistatic construction of the station module, hot air gun and soldering iron.
- A wide range of operating temperatures and air flow levels.
- Compatible with AOYUE replacement air nozzles.
- LED-indicators.
Application
- Complete range of rework applications in medium and large scale service centers.
- Mobile and radio systems devices repair.
- Cellular phones, PDAs, handhelds, laptops, notebooks, and motherboards repair.
- BGA-reballing.
Technical Specifications
| Power Input |
220 V / 50 Hz |
| Power Consumption |
400 W |
| Air Pump Type |
diaphragm |
| Temperature Range |
100 ºC - 450 ºC |
| Air Flow |
120 L/min (max) |
| Temperature Stability |
±1 °C |
| Dimensions |
138 x 100 x 150 mm |
Package Contents
- BAKU BK-878 soldering station module — 1 pc.
- Hot air gun — 1 pc.
- Soldering iron — 1 pc.
- Stand for soldering iron — 1 pc.
- Power cord — 1 pc.
- User manual — 1 pc.
