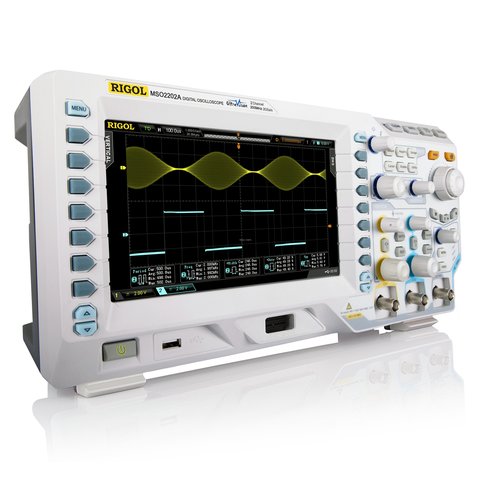

Mixed Signal Oscilloscope RIGOL MSO2202A

id: 859629
Mixed Signal Oscilloscope RIGOL MSO2202A
Overview
Description
Specifications
Delivery
Payment
Warranty
USD 1049.00
Notify
when in stock
Overview
8 kg 110, 220 V Warranty: 36 months
2-channel Mixed Signal Oscilloscope, 200 MHz bandwidth, 2 GSa/s maximum real-time sample rate, 14 MB memory depth, 50,000 wfms/s capture rate, 8-inch LCD display.
USD 1049.00
Notify
when in stock
Add to wishlist
Compare
Compare
USD 1049.00
Notify
when in stock
Impossible to estimate the shipping cost

You may also like

Digital Oscilloscope SIGLENT SDS2102X Plus
Add to wishlist
Digital Oscilloscope SIGLENT SDS2102X Plus
USD 999.00
USD 891.00
Add to wishlist
Add to cart
2 channel Super Phosphor Oscilloscop with a 100 MHz bandwidth, a sample rate of 2 GSa/s, a maximum memory depth of 200 MB and a 10.1" display.
Availability in stock: HK
Shipping cost
ID: 893077 9 kg
Digital Oscilloscope SIGLENT SDS2204X Plus
Add to wishlist
Digital Oscilloscope SIGLENT SDS2204X Plus
USD 2199.00
USD 1799.10
Add to wishlist
Add to cart
4 channel Super Phosphor Oscilloscop with a 200 MHz bandwidth, a sample rate of 2 GSa/s, a maximum memory depth of 200 MB and a 10.1" display.
Availability in stock: HK
Shipping cost
ID: 893075 9 kg
Description

RIGOL MSO2202A is dual channel Mixed Signal Oscilloscope with 200 MHz bandwidth and 2 GSa/s maximum real-time sample rate.

Features

  • Wider vertical range (500 uV/div ~ 10 V/div)
  • Lower overshoot (<5%)
  • 200 MHz bandwidth
  • 16 bit digital inputs for mixed signal applications with 1 GSa/s sampling
  • Max. sample rate - 2 GSa/s
  • Standard memory depth up to 14 Mpts, optional memory depth up to 56 Mpts
  • Innovative "UltraVision" technology
  • 50 Ohm impedance included
  • 16 Digital Channels for Mixed Signal Analysis

Technical Specifications

Analog Channels 2
Digital Channels 16
Bandwidth 200 MHz
Max. Waveform Capture rate 50,000 wfms/s
Vertical Resolution Analog channel: 8 bits; Digital channel: 1 bit
Sample Rate Analog Channels: 2 GSa/s (single channel); 1 GSa/s (dual channels); Digital Channels: 1 GSa/s (8 CH), 500 MSa/s (16 CH)
Max Memory Depth 14 Mpts (standard), 56 Mpts (option)
Display 8 inch LCD display
Standard Interface USB Host & Device, RS-232, P/F Out
Output Voltage ~ 3 V, peak-peak
Power Supply 100 V to 240 V, 45 Hz to 440 Hz
Size 361.6 mm × 179.6 mm × 130.8 mm
Weight 3.9 kg ± 0.5 kg

Additional Information

Download RIGOL MSO2202A Data Sheet.

Download RIGOL MSO2202A User Guide.

Video

Youtube video

Youtube video

Youtube video

Youtube video

Package Contents

  • RIGOL MSO2202A Mixed Signal Oscilloscope — 1 pc.
  • Passive Probes (350 MHz) — 2 pcs.
  • LA Probe — 1 set.
Read more
Description

RIGOL MSO2202A is dual channel Mixed Signal Oscilloscope with 200 MHz bandwidth and 2 GSa/s maximum real-time sample rate.

Features

  • Wider vertical range (500 uV/div ~ 10 V/div)
  • Lower overshoot (<5%)
  • 200 MHz bandwidth
  • 16 bit digital inputs for mixed signal applications with 1 GSa/s sampling
  • Max. sample rate - 2 GSa/s
  • Standard memory depth up to 14 Mpts, optional memory depth up to 56 Mpts
  • Innovative "UltraVision" technology
  • 50 Ohm impedance included
  • 16 Digital Channels for Mixed Signal Analysis

Technical Specifications

Analog Channels 2
Digital Channels 16
Bandwidth 200 MHz
Max. Waveform Capture rate 50,000 wfms/s
Vertical Resolution Analog channel: 8 bits; Digital channel: 1 bit
Sample Rate Analog Channels: 2 GSa/s (single channel); 1 GSa/s (dual channels); Digital Channels: 1 GSa/s (8 CH), 500 MSa/s (16 CH)
Max Memory Depth 14 Mpts (standard), 56 Mpts (option)
Display 8 inch LCD display
Standard Interface USB Host & Device, RS-232, P/F Out
Output Voltage ~ 3 V, peak-peak
Power Supply 100 V to 240 V, 45 Hz to 440 Hz
Size 361.6 mm × 179.6 mm × 130.8 mm
Weight 3.9 kg ± 0.5 kg

Additional Information

Download RIGOL MSO2202A Data Sheet.

Download RIGOL MSO2202A User Guide.

Video

Youtube video

Youtube video

Youtube video

Youtube video

Package Contents

  • RIGOL MSO2202A Mixed Signal Oscilloscope — 1 pc.
  • Passive Probes (350 MHz) — 2 pcs.
  • LA Probe — 1 set.
Specifications
Number of channels
  • dual-channel
  • with 16 channel logic analyzer
Bandwidth
  • 200 MHz
Type
  • desktop
  • mixed-signal
Sample Rate
  • 2 GS/s
Screen Size
  • 8,0" TFT LCD
Storage Capacity
  • 14 MB
