Programmable Power Supply Rigol DP1308A

id: 828934

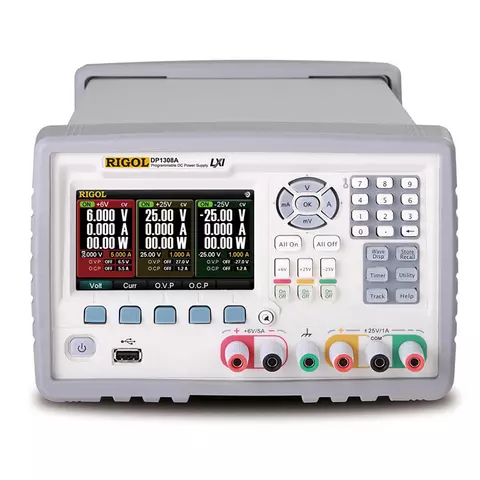

Programmable Power Supply Rigol DP1308A
Overview
Description
Specifications
Delivery
Payment
Warranty
Discontinued
Find substitute
Overview
14 kg 110, 220 V Warranty: 36 months
Triple channel, 80 Wt power supply Rigol DP1308A is designed for supplying up to 25 V and 5 A DC. High precision, low ripple and noise.
Discontinued
Find substitute
Compare
Compare
Discontinued
Find substitute
Impossible to estimate the shipping cost

You may also like

DC Power Supply SIGLENT SPD3303X
Bestseller
Add to wishlist
DC Power Supply SIGLENT SPD3303X
USD 539.00
USD 475.00
Add to wishlist
Add to cart
Programmable high-precision linear DC power supply with 3 output channels and a 220 W max. output power. 4.3-inch TFT LCD.
Bestseller
Availability in stock: HK
Shipping cost
ID: 862796 9 kg 110, 220
Programmable DC Power Supply RIGOL DP832
Bestseller
Add to wishlist
Programmable DC Power Supply RIGOL DP832
USD 472.00
USD 424.80
Add to wishlist
Add to cart
3-channel PSU for DC voltage power supply in a range from 0 to 30 V and current in a range from 0 to 3 A.
Bestseller
Availability in stock: HK
Shipping cost
ID: 841692 14.5 kg 110, 220
Description

Triple channel, 80 Wt power supply Rigol DP1308A is designed for supplying up to 25 V and 5 A DC. Rigol DP1308A is highly precise in programming voltage and current, has low ripple and noise. The +6 V channel is electrically isolated from ±25 V channel output to minimize the interference between the circuits under test.

User Manuals

Download Rigol DP1308A Programmable power supply user manual

Download additional information about Rigol DP1308A Programmable power supply

Features

  • 4.3" true color LCD display
    Programmable Power Supply Rigol DP1308A
  • Separate control and independent triple output
    Programmable Power Supply Rigol DP1308A
  • Excellent line and load regulation rate
  • Maximum voltage output 25 V
    Programmable Power Supply Rigol DP1308A
  • Fast transient response time
  • Voltage tracking
    Programmable Power Supply Rigol DP1308A
  • Waveform display
    Programmable Power Supply Rigol DP1308A
  • Overcurrent and overvoltage protection function
    Programmable Power Supply Rigol DP1308A
  • Store and recall system setups
  • Online help
    Programmable Power Supply Rigol DP1308A
  • 1 mV and 1 mA resolution
    Programmable Power Supply Rigol DP1308A
  • Chinese and English input and interface
    Programmable Power Supply Rigol DP1308A
  • USB device, USB host, LAN, GPIB interfaces
    Programmable Power Supply Rigol DP1308A
  • USB flash drive storage support

Rigol DP1308A Programmable Power Supply Technical Specifications

v
Channels +6 V +25 V -25 V
DC output Voltage 0∼+6 V 0∼+25 V 0∼-25 V
Current 0∼5 A 0∼1 A 0∼1 A
Overvoltage protection 0.1 V∼6.5 V 0.1 V∼27 V -0.1 V∼-27 V
Overcurrent protection 0.1 A~5.5 A 0.1 A∼1.2 A 0.1 A∼1.2 A
Load Regulation ± (output percentage + offset) Voltage
Current
Line Regulation ± (output percentage + offset) Voltage
Current
Ripple and noise Normal mode voltage
Normal mode current
Common mode current
Program mind accuracy Voltage 0.1%+5 mV 0.05% + 20 mV
Current 0.2% + 10 mA 0.15%+4 mA
Read back accuracy Voltage 0.1% + 5 mV 0.05%+10 mV
Current 0.2%+10 mA 0.15%+4 mA
Resolution Programming 0.5 mV / 0.5 mA 1.5 mV / 0.1 mA
Read back 0.5 mV / 0.5 mA 1.5 mV / 0.1 mA
Meter 1 mV / 1 mA 10 mV / 1 mA
Transient response time less than 50 µs
Command processing time
Temperature coefficient Voltage 0.01% + 2 mV 0.01% + 3 mV
Current 0.02% + 3 mA 0.01%+0.5 mA
Stability Voltage 0.03% + 1 mV 0.02%+2 mV
Current 0.1% + 3 mA 0.05%+1 mA
OVP/OCP Accuracy 0.5% + 0.5 V / 0.5% + 0.5 A
Activation time 1.5 ms (OVP ≤3 V);
Dimensions, mm 235 × 155 × 384
Weight, kg 11

Rigol DP1308A Programmable Power Supply Package

  • Programmable power supply Rigol DP1308A (1 pc.)
  • USB cable (1 pc.)
  • Power cord (1 pc.)
  • Backup fuse
    • 250V/T3A (2 pcs.)
    • 250V/T2A (2 pcs.)
Read more
Description

Triple channel, 80 Wt power supply Rigol DP1308A is designed for supplying up to 25 V and 5 A DC. Rigol DP1308A is highly precise in programming voltage and current, has low ripple and noise. The +6 V channel is electrically isolated from ±25 V channel output to minimize the interference between the circuits under test.

User Manuals

Download Rigol DP1308A Programmable power supply user manual

Download additional information about Rigol DP1308A Programmable power supply

Features

  • 4.3" true color LCD display
    Programmable Power Supply Rigol DP1308A
  • Separate control and independent triple output
    Programmable Power Supply Rigol DP1308A
  • Excellent line and load regulation rate
  • Maximum voltage output 25 V
    Programmable Power Supply Rigol DP1308A
  • Fast transient response time
  • Voltage tracking
    Programmable Power Supply Rigol DP1308A
  • Waveform display
    Programmable Power Supply Rigol DP1308A
  • Overcurrent and overvoltage protection function
    Programmable Power Supply Rigol DP1308A
  • Store and recall system setups
  • Online help
    Programmable Power Supply Rigol DP1308A
  • 1 mV and 1 mA resolution
    Programmable Power Supply Rigol DP1308A
  • Chinese and English input and interface
    Programmable Power Supply Rigol DP1308A
  • USB device, USB host, LAN, GPIB interfaces
    Programmable Power Supply Rigol DP1308A
  • USB flash drive storage support

Rigol DP1308A Programmable Power Supply Technical Specifications

v
Channels +6 V +25 V -25 V
DC output Voltage 0∼+6 V 0∼+25 V 0∼-25 V
Current 0∼5 A 0∼1 A 0∼1 A
Overvoltage protection 0.1 V∼6.5 V 0.1 V∼27 V -0.1 V∼-27 V
Overcurrent protection 0.1 A~5.5 A 0.1 A∼1.2 A 0.1 A∼1.2 A
Load Regulation ± (output percentage + offset) Voltage < 0.01% + 2 mV
Current <0.01%+250 µA
Line Regulation ± (output percentage + offset) Voltage < 0.01% + 2 mV
Current <0.01%+250 µA
Ripple and noise Normal mode voltage < 350 µVrms/2 mVpp
Normal mode current < 2 mA rms < 350 µArms
Common mode current <1.5 µArms
Program mind accuracy Voltage 0.1%+5 mV 0.05% + 20 mV
Current 0.2% + 10 mA 0.15%+4 mA
Read back accuracy Voltage 0.1% + 5 mV 0.05%+10 mV
Current 0.2%+10 mA 0.15%+4 mA
Resolution Programming 0.5 mV / 0.5 mA 1.5 mV / 0.1 mA
Read back 0.5 mV / 0.5 mA 1.5 mV / 0.1 mA
Meter 1 mV / 1 mA 10 mV / 1 mA
Transient response time less than 50 µs
Command processing time < 50 ms
Temperature coefficient Voltage 0.01% + 2 mV 0.01% + 3 mV
Current 0.02% + 3 mA 0.01%+0.5 mA
Stability Voltage 0.03% + 1 mV 0.02%+2 mV
Current 0.1% + 3 mA 0.05%+1 mA
OVP/OCP Accuracy 0.5% + 0.5 V / 0.5% + 0.5 A
Activation time 1.5 ms (OVP ≤3 V); < 10 ms (OVP < 3 V) < 10 ms (OCP)
Dimensions, mm 235 × 155 × 384
Weight, kg 11

Rigol DP1308A Programmable Power Supply Package

  • Programmable power supply Rigol DP1308A (1 pc.)
  • USB cable (1 pc.)
  • Power cord (1 pc.)
  • Backup fuse
    • 250V/T3A (2 pcs.)
    • 250V/T2A (2 pcs.)
Specifications
Type
  • pulse
  • programmable
Number of channels
  • three-channel
Max. Current
  • up to 5 A
Indicator type
  • 4.3" color LCD display
Max. Voltage
  • up to 25 V
