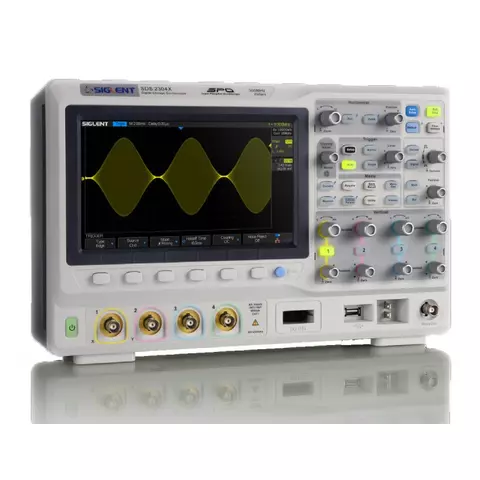

Super Phosphor Oscilloscope SIGLENT SDS2302X

id: 862786
9 kg 110, 220 V Warranty: 36 month (s)
Desktop 2-channel phosphor digital oscilloscope with 300 MHz bandwidth, 2 GSa/s real-time sample rate, 140 MB memory, 8.0" display and up to 60,000 waveforms/sec capture rate.
Discontinued
Contact
sales team
Discontinued
Contact
sales team
Add to wishlist
Compare
Compare
Impossible to estimate the shipping cost
Overview
Specifications
Video
Delivery
Payment
Warranty
Overview

SIGLENT SDS2302X is a 2-channel Super Phosphor Oscilloscope with a bandwidth of 300 MHz, a sample rate of 2 GSa/s, and a 140 Mpts memory depth.

Features

  • New generation of SPO (Super Phosphor Oscilloscope) technology
  • Supports statistics calculations, Gating  measurement, Math measurement, Ref measurement
  • Waveform math function (FFT, addition, subtraction, multiplication, division, integration, differentiation, square root)
  • High Speed hardware based Pass/Fail function
  • Large 8 inch TFT-LCD display with 800*480  resolution
  • Different interfaces: USB Host, USB Device, LAN, Pass / Fail, Trigger Out, GPIB

User Manual

Download SIGLENT SDS2302X User Manual.

Technical Specifications

  SDS2072X SDS2074X SDS2102X SDS2104X SDS2202X SDS2204X SDS2302X SDS2304X
Channels 2 4 2 4 2 4 2 4
Bandwidth 70 MHz 70 MHz 100 MHz 100 MHz 200 MHz 200 MHz 300 MHz 300 MHz
Sample Rate (max.) 2 GSa/s
Memory Depth 140 Mpts
Math +, -, *, /, FFT, d/dt ,∫dt,√
FFT windows Rectangle, Hanning, Hamming, Blackman
Time base 1 ns/div to 50 s/div
Display 20.32 cm (8") WVGA-Color-LCD, 800 × 480 Pixel
Interface USB Host, USB Device, LAN, Pass/Fail, Trigger Out, GBIP
Size (W × H × D) 352 × 224 × 112 mm
Weight 3.4 kg

Video

Youtube video

You'll find even more video reviews in the Video tab. Go and check it out!

Package Contents

  • SIGLENT SDS2302X oscilloscope (1 pc.)
  • Probes (2 pcs.)
  • USB cable (1 pc.)
  • Power cable (1 pc.)
  • Quick start guide (1 pc.)
Specifications
Number of channels
  • dual-channel
Bandwidth
  • 300 MHz
Type
  • desktop
  • phosphor
Sample Rate
  • 2 GS/s
Storage Capacity
  • 140 MB
Screen Size
  • 8,0" TFT LCD
