Overview

9 kg 110, 220 V Warranty: 36 months
Desktop 4-channel phosphor digital oscilloscope with 300 MHz bandwidth, 2 GSa/s real-time sample rate, 140 MB memory, 8.0" display and up to 60,000 waveforms/sec capture rate. Read more
Discontinued
Discontinued
Impossible to estimate the shipping cost

You may also like

Description

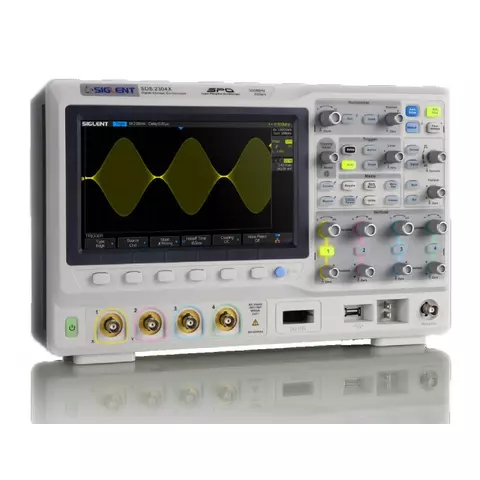

SIGLENT SDS2304X is a 4-channel Super Phosphor Oscilloscope with a bandwidth of 300 MHz, a sample rate of 2 GSa/s, and a 140 Mpts memory depth.

Features

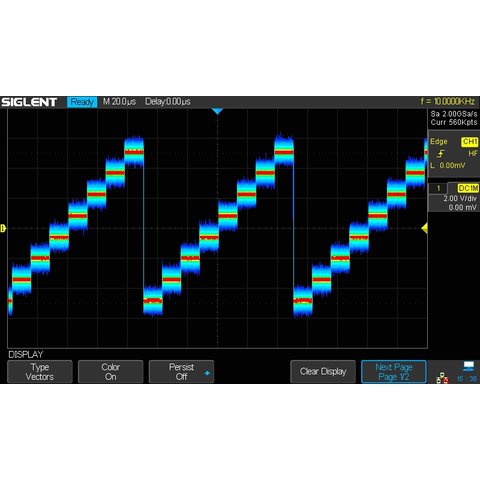

  • New generation of SPO (Super Phosphor Oscilloscope) technology

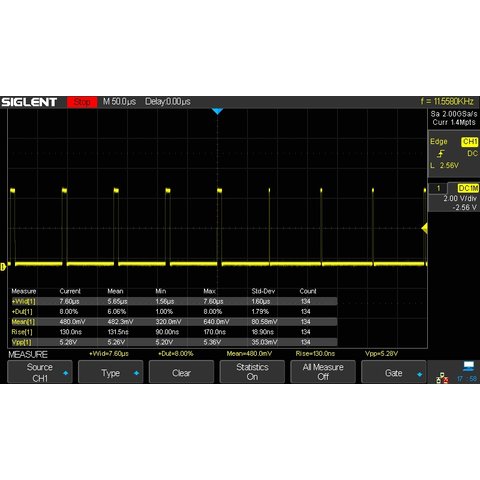

  • Supports statistics calculations, Gating  measurement, Math measurement, Ref measurement
  • Waveform math function (FFT, addition, subtraction, multiplication, division, integration, differentiation, square root)
  • High Speed hardware based Pass/Fail function
  • Large 8 inch TFT-LCD display with 800*480  resolution
  • Different interfaces: USB Host, USB Device, LAN, Pass / Fail, Trigger Out, GPIB

User Manual

Download SIGLENT SDS2304X User Manual.

Technical Specifications

  SDS2072X SDS2074X SDS2102X SDS2104X SDS2202X SDS2204X SDS2302X SDS2304X
Channels 2 4 2 4 2 4 2 4
Bandwidth 70 MHz 70 MHz 100 MHz 100 MHz 200 MHz 200 MHz 300 MHz 300 MHz
Sample Rate (max.) 2 GSa/s
Memory Depth 140 Mpts
Math +, -, *, /, FFT, d/dt ,∫dt,√
FFT windows Rectangle, Hanning, Hamming, Blackman
Time base 1 ns/div to 50 s/div
Display 20.32 cm (8") WVGA-Color-LCD, 800 × 480 Pixel
Interface USB Host, USB Device, LAN, Pass/Fail, Trigger Out, GBIP
Size (W × H × D) 352 × 224 × 112 mm
Weight 3.4 kg

Video

Youtube video

You'll find even more video reviews in the Video tab. Go and check it out!

Specifications

Number of channels
  • 4-channel
Bandwidth
  • 300 MHz
Type
  • desktop
  • phosphor
Sample Rate
  • 2 GS/s
Storage Capacity
  • 140 MB
Screen Size
  • 8,0" TFT LCD

Video

Youtube video
Youtube video
Youtube video
Youtube video
