Description

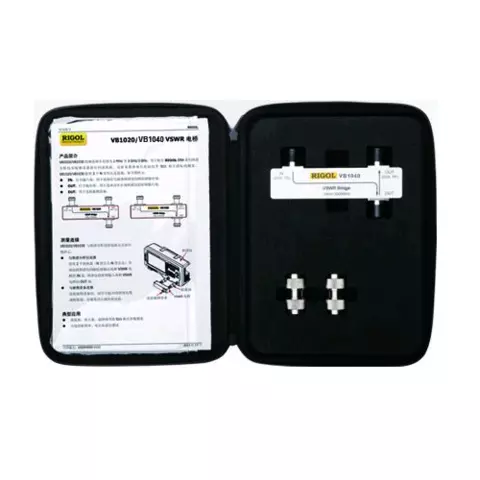

RIGOL VB1040 is a VSWR Bridge option to be installed in RIGOL DSA series spectrum analysers. It may be connected directly to the front of RIGOL spectrum analysers, without the need for cables, for convenience and improved accuracy.
Applications
- Measuring S11 (input VSWR, input return loss).
- .Measuring S22 (output VSWR, output return loss).
- Resonant frequency and VSWR tests of the antenna.
Technical Specifications
| Frequency range | 800 MHz to 4 GHz |
| Connector type | N (Female) Type |
| Adaptor | Dual N (Male) Type |
| Impedance | 50 Ω |
| Maximum Input Power | +27 dBm (0.5 W) |
| Operation Temperature | -20 ℃ to 80 ℃ |
| Storage Temperature | -40 ℃ to 100 ℃ |
| Dimensions | 130 mm × 75 mm × 30 mm |
| Weight | 0.5 kg |
Compatibility
RIGOL VB1040 VSWR bridge includes RIGOL VSWR-DSA800 measurement software. This software is compatible with RIGOL DSA800 series spectrum analysers.
