Arbitrary Waveform / Function Generator RIGOL DG4102

id: 834193

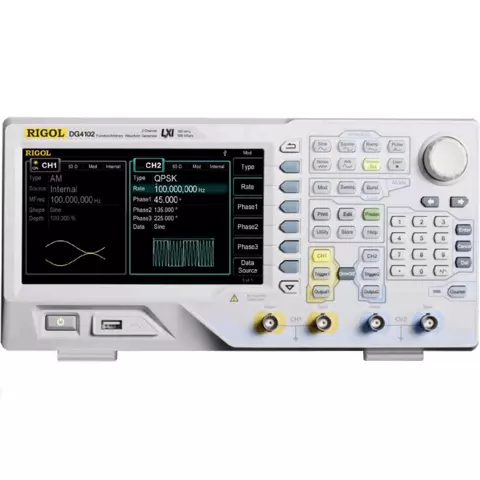

Arbitrary Waveform / Function Generator RIGOL DG4102
Overview
Description
Specifications
Delivery
Payment
Warranty
USD 1129.00

Overview

7.8 kg 110, 220 V Warranty: 36 months
Dual-channel function/arbitary waveform generator, with 100 MHz frequency, 500 MS/s sample rate, 14 bits vertical resolution, 16 K waveform length, modulation functions: AM, FM, PM, ASK, FSK, PSK, BPSK, QPSK, 3FSK, 4FSK, OSK, PWM. Read more
USD 1129.00
USD 1129.00
Impossible to estimate the shipping cost

You may also like

Description

DG4000 series of generators combines many functions, including Function Generator, Arbitrary Waveform Generator, Pulse Generator, Harmonic Generator, Analog/Digital Modulator and Counter.

RIGOL DG4102 arbitrary waveform / function generator adopts the Direct Digital Synthesizer (DDS) technology, can provide stable, precise, pure and low distortion signal. The user-friendly interface design and panel layout of the RIGOL DG4102 gives users exceptional experience. Besides, the remote control of the generator can be easily done through different standard configuration interfaces, which provides more solutions for users.

RIGOL DG4102 Arbitrary Waveform / Function Generator User Manuals

Download RIGOL DG4102 arbitrary waveform / function generator user manual

Data Sheet

Download RIGOL DG4102 Data Sheet.

RIGOL DG4102 Arbitrary Waveform / Function Generator Software

Download RIGOL DG4102 arbitrary waveform / function generator software

RIGOL DG4102 Arbitrary Waveform / Function Generator Features

  • 6 standard waveforms:
    • Sine
    • Square
    • Ramp
    • Pulse
    • Noise
    • Harmonics
  • Arbitrary waveform function with up to 150 built-in waveforms
  • 500 MSa/s sample rate
  • 2 ppm high frequency stability, -115 dBc/Hz low phase noise
  • Build-in high precision 200 MHz BW frequency counter
  • Up to 16 orders Harmonic generation function
  • 7 inch color LCD (800 × 480 pixels)
  • 14 bits vertical resolution
  • 16 K waveform length

RIGOL DG4102 Arbitrary Waveform / Function Generator Technical Specifications

Standard waveforms
Waveforms Sine, Square, Ramp, Pulse, Noise, Harmonics
Arbitrary waveforms
Sine 1 μHz to 100 MHz
Square 1 μHz to 40 MHz
Ramp 1 μHz to 3 MHz
Pulse 1 μHz to 25 MHz
Harmonic 1 μHz to 50 MHz
White noise 80 MHz Bandwidth
Resolution 1 μHz
Sine wave spectral purity
Harmonic distortion DC-1 MHz 1 MHz-10 MHz 10 MHz-100 MHz 100 MHz-160 MHz
<-60 dBc <-55 dBc <-50 dBc <-40 dBc
Total harmonic distorion <0.1%(10 Hz-20 kHz, 0 dBm)
Spurious (non-harmonic) ≤10 MHz <-65 dBc
>10 MHz <-65 dBc + 6 dB/octave
Phase noise 10 MHz: ≤-115 dBc/Hz
Square wave characteristic
Rise/fall time <10 ns
Overshoot <3%
Duty cycle ≤10 MHz 20.0% to 80.0%
10 MHz-40 MHz 40.0% to 60.0%
>40 MHz 50.0% (fixed)
Jitter ≤5 MHz 2 ppm + 500 ps
Pulse wave characteristics
Pulse period 40 ns to 1000000 s
Pulse width ≥12 ns
Overshoot <3%
Jitter ≤5 MHz 2 ppm + 500 ps
Arbitrary wave characteristics
Waveform length 16 K points
Vertical resolution 14 bits
Sample rate 500 MSa/s
Minimum rising /falling time <5 ns
Jitter (RMS) ≤5 MHZ 2 ppm + 500 ps
Interpolation method Close, Linear
Output characteristics
Amplitude ≤20 MHz: 1 mVpp to 10 Vpp
≤60 MHz: 1 mVpp to 5 Vpp
≤100 MHz: 1 mVpp to 2.5 Vpp
Amplitude accuracy
(1 kHz)
± 1% of setting + 2 mVpp
Amplitude flatness (sine wave relative to 100 kHz) ≤10 MHz: ±0.1 dB
≤60 MHz: ±0.2 dB
≤100 MHz: ±0.4 dB
≤160 MHz: ±0.8 dB
DC offset
Range ±5 Vpk ac + dc
Accuracy 1% of setting + 5mV + 0.5% of amplitude
AM modulation
Carrier waveforms Sine, Square, Ramp, Noise, Arb
Source Internal / external
Modulating waveforms Sine, Square, Ramp, Noise, Arb
Depth 0% to 120%
FM modulation
Carrier waveforms Sine, Square, Ramp, Arb
Source Internal / external
Modulating waveforms Sine, Square, Ramp, Noise, Arb
Modulating frequency 2 mHz ~ 50 kHz
PM modulation
Carrier waveforms Sine, Square, Ramp, Arb
Source Internal / external
Modulating waveforms Sine, Square, Ramp, Noise, Arb
Phase deviation 0° to 360°
ASK modulation
Carrier waveforms Sine, Square, Ramp, Arb
Source Internal / external
Modulating waveforms 50% duty cycle square
FSK modulation
Carrier waveforms Sine, Square, Ramp, Arb
Source Internal / external
Modulating waveforms 50% duty cycle square
3FSK modulation
Carrier waveforms Sine, Square, Ramp, Arb
Source Internal
Modulating waveforms 50% duty cycle square
4FSK modulation
Carrier waveforms Sine, Square, Ramp, Arb
Source Internal
Modulating waveforms 50% duty cycle square
PSK modulation
Carrier waveforms Sine, Square, Ramp, Arb
Source Internal / external
Modulating waveforms 50% duty cycle square
BPSK modulation
Carrier waveforms Sine, Square, Ramp, Arb
Source Internal
Modulating waveforms 50% duty cycle square
QPSK modulation
Carrier waveforms Sine, Square, Ramp, Arb
Source Internal
Modulating waveforms 50% duty cycle square
OSK modulation
Carrier waveforms Sine
Source Internal / external
Oscillation time 8 ns ~ 200 s
PWM modulation
Carrier waveforms Pulse
Source Internal / external
Modulating waveforms Sine, Square, Ramp, Noise, Arb
Width deviation 0% to 100% of Pulse Width
Sweep
Carrier waveforms Sine, Square, Ramp, Arb
Type Linear, log or step
Direction up or down
Start/Stop Frequency 1 μHz to 100 MHz
Sweep time 1 ms to 300 s
Source Internal/ external/ manual
Burst
Waveforms Sine, Square, Ramp, Pulse, Noise, Arb
Carrier Frequency 2 mHz to 100 MHz
Burst Count 1 to 1 000 000 or Infinite
Internal period 2 μs to 500 s
Gate source External trigger
Trigger source Internal/ external/ manual
General specification
Display 7-inch TFT LCD (800 × 480 pixels)
Interfaces USB Host (2), USB Device, LAN
Power 100 V ~ 240 V (45 Hz ~ 440 Hz)
Less than 50 W
Dimentions 313 × 160.7 × 116.74 mm
Weight 4.5 kg

RIGOL DG4102 Arbitrary Waveform / Function Generator Package Contents

  • RIGOL DG4102 arbitrary waveform / function generator (1 pc.)
  • Power cord (1 pc.)
  • USB cable (1 pc.)
  • BNC cable, 1 meter (1 pc.)

RIGOL DG4102 Arbitrary Waveform / Function Generator Optional Accessories

  • 40 dB Attenuator (1 pc.)
  • Rack Mount Kit (1 pc.)

Specifications

Max. signal frequency
  • 100 MHz
Channels
  • dual channel
