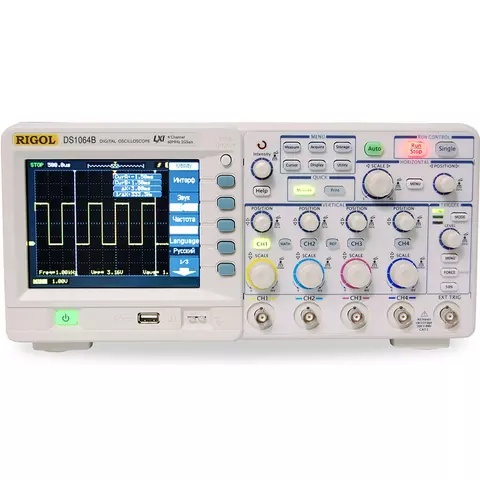

Digital 4-channel Oscilloscope Rigol DS1104B
id: 812098
Digital 4-channel Oscilloscope Rigol DS1104B
Overview
Description
Specifications
Delivery
Payment
Warranty
Discontinued
Contact
sales team
sales team
Overview

7.6 kg 110, 220 V Warranty: 36 months
100 MHz bandwidth and much more to simplify your system design and test. 2 GSa/s real time sample rate. 4 analog input channels. Standard connecting interfaces: USB Device, USB Host X2 and LAN
