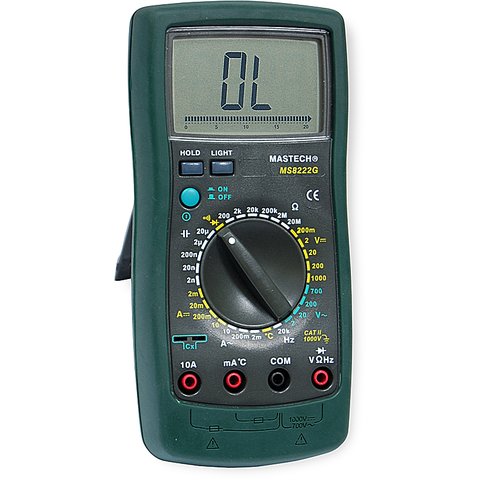

Digital Multimeter MASTECH MS8222G

id: 9372
Digital Multimeter MASTECH MS8222G
Overview
Description
Specifications
Video
Delivery
Payment
Warranty
Price coming soon
Contact
sales team
Overview
0.67 kg Warranty: 6 months
All standard functions and temperature, capacity and frequency measurement. 40-segmental graphic scale. Automatic power-off
Price coming soon
Contact
sales team
Compare
Compare
Price coming soon
Contact
sales team
Impossible to estimate the shipping cost

You may also like

Digital Multimeter UNI T UT55
Bestseller
Add to wishlist
Digital Multimeter UNI-T UT55
USD 30.31
Add to wishlist
Add to cart
Digital multimeter for measuring AC/DC voltage, AC/DC current, resistance, capacitance, frequency, temperature, as well as diode, transistor and continuity tests.
Bestseller
Availability in stock: HK
Shipping cost
ID: 834629 0.82 kg
Digital Multimeter UNI T UT39C+
Bestseller
Add to wishlist
Digital Multimeter UNI-T UT39C+
USD 15.26
Add to wishlist
Add to cart
Measures AC/DC voltage and current, resistance, capacitance, frequency, temperature and hFE (transistor measurement). Diode, continuity and non-contact voltage (NCV) testing. Manual range selection.
Bestseller
Availability in stock: HK
Shipping cost
ID: 883714 0.5 kg
Digital Multimeter Accta AT 280
Bestseller
New
Add to wishlist
Digital Multimeter Accta AT-280
USD 27.00
Add to wishlist
Add to cart
True RMS multimeter that measures AC/DC current and voltage, resistance, inductance, conductance, capacitance, frequency, and temperature. May be used for diode and transistor testing.
Bestseller
New
Availability in stock: HK
Shipping cost
ID: 891572 0.714 kg
Description

Mastech MS8222G is a digital multimeter with manual ranging measures DC and AC, direct and alternating voltage, resistance and condenser capacitance.

This model is compatible with Test Leads MASTECH T3000.

Video

Youtube video

You'll find even more video reviews in the Video tab. Go and check it out!

Technical specifications

Range Selection manual
Display 1999 counts
DC voltage 200 mV/2/20/200 V ±0.5% 1000 V ±0.8%
AC voltage 2/20/200 V ±1.0%,700 V± 1.2%
DC current 2/20/200 mA ±1.5%,10 A ±2.0%
AC current 2/200 mA ±2.0%, 10 A ±3.0%
Frequency 10 Hz - 20 kHz
Resistance 200 Ω/2/200/2/20 MΩ ±1.0%
Temperature measurement -20 - 1000 ±1.0%
Capacitance 2/20/200 nF/2/20 µF ±4.0%
Conductivity wire identification Yes
Diode / transistor hFE test Yes
Automatic power-off Yes
Data Hold Yes
Charge battery indication Yes
Overload indication "1" Yes
Display illumination Yes
Graphic Scale 40 segments
Power soutce 9 V
Dimensions 195 × 92 × 43 mm
Read more
Description

Mastech MS8222G is a digital multimeter with manual ranging measures DC and AC, direct and alternating voltage, resistance and condenser capacitance.

This model is compatible with Test Leads MASTECH T3000.

Video

Youtube video

You'll find even more video reviews in the Video tab. Go and check it out!

Technical specifications

Range Selection manual
Display 1999 counts
DC voltage 200 mV/2/20/200 V ±0.5% 1000 V ±0.8%
AC voltage 2/20/200 V ±1.0%,700 V± 1.2%
DC current 2/20/200 mA ±1.5%,10 A ±2.0%
AC current 2/200 mA ±2.0%, 10 A ±3.0%
Frequency 10 Hz - 20 kHz
Resistance 200 Ω/2/200/2/20 MΩ ±1.0%
Temperature measurement -20 - 1000 ±1.0%
Capacitance 2/20/200 nF/2/20 µF ±4.0%
Conductivity wire identification Yes
Diode / transistor hFE test Yes
Automatic power-off Yes
Data Hold Yes
Charge battery indication Yes
Overload indication "1" Yes
Display illumination Yes
Graphic Scale 40 segments
Power soutce 9 V
Dimensions 195 × 92 × 43 mm
Specifications
Type
  • digital
Measured Values
  • DC voltage
  • AC voltage
  • AC
  • DC
  • resistance
  • capacitance
  • frequency
  • temperature
Additional Functions
  • acoustic continuity test
  • data hold
  • automatic shutdown/sleep mode
  • mnemonic
  • diode test
  • transistors test
  • backlight
Range Selection
  • manual range
Digit Capacity
  • 1999
DC Voltage
  • up to 1000 V
Resistance
  • up to 20 MOhm
Capacitance
  • up to 20 μF
Frequency
  • up to 20 kHz
DC
  • up to 10 A
AC
  • up to 10 A
Inductance
  • no
Temperature
  • yes
Power
  • no
Duty cycle
  • no
True RMS
  • no
Backlight
  • no
PC connection
  • no connection to PC
Diode test
  • yes
Analog bar graph
  • yes
Transistor check
  • no
AC Voltage
  • up to 700 V
Continuity test
  • yes
Battery Testing
  • no
