Measures AC/DC voltage, AC/DC current, resistance, capacitance, frequency, temperature, duty ration, and is also used for continuity and diode testing.
Availability in stock:
HK
ID: 898460 0.8 kg

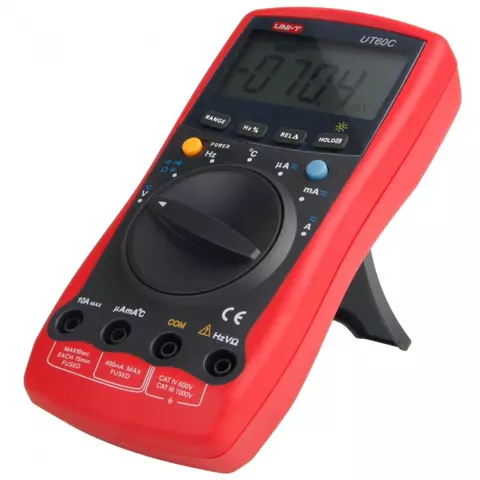

Digital Multimeter UNI-T UT60C
id: 855701
Digital Multimeter UNI-T UT60C
Overview
Description
Specifications
Delivery
Payment
Warranty
Discontinued
Overview
1 kg Warranty: 24 months
A digital multimeter for AC/DC current and voltage, resistance, capacitance, frequency, temperature, duty cycle, for continuity and diode tests. Read more
Discontinued
You may also like
Description
UNI-T UT60C Digital Multimeter measures AC/DC current and voltage, resistance, capacitance, frequency, temperature, duty cycle, tests continuity and diodes
Please note that the standard temperature probe from the multimeter package contents allows measuring temperature up to 300 ºC. In case you require measuring temperatures above that value, please, buy Uni-T UT-T03 Temperature Probe.
Features
- Measurement/test functions:
- DC Voltage
- AC Voltage
- DC Current
- AC Current
- Resistance
- Capacitance
- Frequency
- Temperature
- Duty Cycle
- Diode
- Continuity buzzer
- Fused 10A range
- Auto ranging
- Relative mode
- Data hold function
- Display backlight
- Full icon display
- Sleep mode
- Low battery indication
Video
You'll find even more video reviews in the Video tab. Go and check it out!
Technical Specifications
| Function | Range | Accuracy |
|---|---|---|
| DC Voltage | 400 mV / 4 V / 40 V / 400 V / 1000 V | ±(0.8%+1) |
| AC Voltage | 4 V / 40 V / 400 V / 750 V | ±(1%+5) |
| DC Current | 400 mA / 4000 mA / 40 mA / 400 mA / 4 A / 10 A | ±(1%+2) |
| AC Current | 400 mA / 4000 mA / 40 mA / 400 mA / 4 A / 10 A | ±(1.5%+5) |
| Resistance | 400 Ω / 4 kΩ / 40 kΩ / 400 kΩ / 4 MΩ / 40 MΩ | ±(1%+2) |
| Capacitance | 40 nF / 400 nF / 4 mF / 40 mF / 100 mF | ±(3%+5) |
| Temperature | -40ºC ~ 400ºC | ±(1%+3) |
| Frequency | 10 Hz - 10 MHz | ±(0.1%+3) |
| Duty Cycle | 0.1% ~ 99.9% | |
| General Characteristics | ||
| Power | 9 V Battery (6F22) | |
| Display | LCD, 63 × 31 mm | |
| Size | 177 × 85 × 40 mm | |
| Weight | 340 g | |
User Manual
Download UNI-T UT60C User Manual.
Package Contents
- UNI-T UT60C Digital Multimeter
- Test Lead
- Battery
- Point Contact Temperature Probe
- Test Clip
- English Manual
Optional Accessories
- Temperature Probe UNI-T UT-T03
- Clip-On Test Lead Light UNI-T UT-TL
- Built-In Test Lead Light UNI-T UT-L1
- Built-In Test Lead Light Plus UNI-T UT-L2
Specifications
| Type |
|
| Range Selection |
|
| Digit Capacity |
|
| DC Voltage |
|
| AC Voltage |
|
| Resistance |
|
| Capacitance |
|
| Frequency |
|
| DC |
|
| AC |
|
| Inductance |
|
| Temperature |
|
| Power |
|
| Duty cycle |
|
| True RMS |
|
| Backlight |
|
| PC connection |
|
| Diode test |
|
| Analog bar graph |
|
| Transistor check |
|
| Continuity test |
|
| NCV |
|
| Battery Testing |
|
