Overview
9 kg
Availability in stock: HK
Warranty: 36 months
4 channel Super Phosphor Oscilloscop with a 100 MHz bandwidth, a sample rate of 2 GSa/s, a maximum memory depth of 200 MB and a 10.1" display.
USD 1399.00
USD 1259.10
Add to cart
Add to wishlist
Compare
Compare
USD 1399.00
USD 1259.10
Add to cart
Impossible to estimate the shipping cost
Description

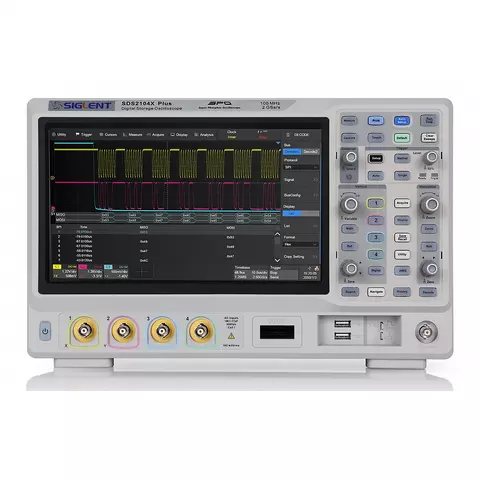

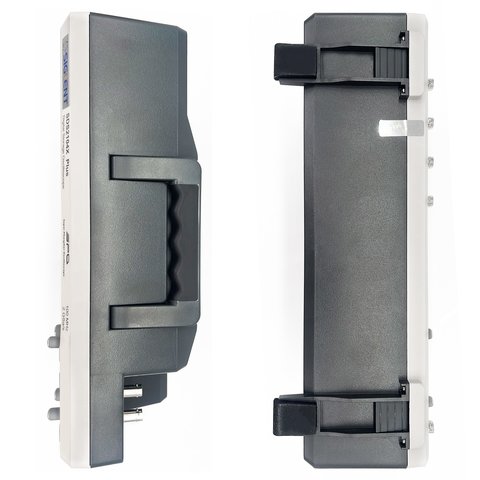

SIGLENT SDS2104X Plus is a desktop 4-channel Super Phosphor Oscilloscop with a 100 MHz bandwidth, a sample rate of 2 GSa/s, a maximum memory depth of 200 MB and a 10.1" display.

The Siglent SDS2104X Plus employs Siglent’s SPO technology with a maximum waveform capture rate of up to 120,000 wfm/ s (normal mode, up to 500,000 wfm/s in Sequence mode), 256-level intensity grading display function plus a color temperature display mode. It also employs an innovative digital trigger system with high sensitivity and low jitter.

Features

  • New generation of SPO (Super Phosphor Oscilloscope) technology.
  • Waveform capture rates up to 120,000 wfm/s (normal mode) and 500,000 wfm/s (sequence mode).
  • Supports 256-level intensity grading and color temperature display modes.
  • DigitaI trigger system.
  • Intelligent trigger: Edge, Slope, Pulse, Window, Runt, Interval, Dropout, Pattern and Video (HDTV supported).
  • SeriaI bus triggering and decoder, supports l2C, SPI, UART, CAN, LIN (Standard) and CAN FD, FlexRay, l2S, and MIL-STD- 1553B (optional) protocols.
  • Low background noise, features 0.5 mV/div to 10 V/div voltage scales.
  • Segmented acquisition (Sequence) mode, dividing the maximum record length into multiple segments (up to 90,000), according to trigger conditions set by the user.
  • History waveform record (History) function for up to 90,000 triggered waveforms (frames).
  • Automatic measurement function on 50+ parameters, supports statistics with histogram.
  • Abundant data processing and analysis functions such as Search, Navigate, Mask Test, Bode plot, Power Analysis (optional) and Counter.
  • Math measurement (2 Mpts FFT, +, -, x, ~, d/dt, f dt,f, average, ERES, and formula editor).
  • Multiple interfaces: USB 2.0 Host × 2, USB 2.0 Device, LAN, External Trigger, Auxiliary output (TRIG OUT, PASS/FAIL).
  • External mouse and keyboard support.
  • Built-in web server supports remote control over the LAN port using a web browser.
  • A waveform generator, a logic analyzer module and power analysis option for ripple and power quality measurements (optional).
Read more

Frequently bought together

Function Arbitrary Waveform Generator SIGLENT SDG1032X
Bestseller
Add to wishlist
Function/Arbitrary Waveform Generator SIGLENT SDG1032X
USD 359.00
USD 323.10
Add to wishlist
Add to cart
Dual-channel function/arbitrary waveform generator with 30 MHz max. output frequency, 150 MSa/s sample rate, 14 bits vertical resolution.
Bestseller
Shipping cost
ID: 868138 6 kg 110, 220
Function Arbitrary Waveform Generator SIGLENT SDG1062X
Bestseller
Add to wishlist
Function/Arbitrary Waveform Generator SIGLENT SDG1062X
USD 459.00
USD 413.10
Add to wishlist
Add to cart
Dual-channel function/arbitary waveform generator with 60 MHz max. output frequency, 150 MSa/s sample rate, 14 bits vertical resolution.
Bestseller
Shipping cost
ID: 869148 6 kg 110, 220
Function Arbitrary Waveform Generator SIGLENT SDG2042X
Bestseller
Add to wishlist
Function/Arbitrary Waveform Generator SIGLENT SDG2042X
USD 499.00
USD 449.10
Add to wishlist
Add to cart
Dual-channel function/arbitary waveform generator with 40 MHz max. output frequency, 1.2 GSa/s sample rate, 16 bits vertical resolution.
Bestseller
Availability in stock: HK
Shipping cost
ID: 862791 6 kg 110, 220
Function Arbitrary Waveform Generator SIGLENT SDG2082X
Bestseller
Add to wishlist
Function/Arbitrary Waveform Generator SIGLENT SDG2082X
USD 619.00
USD 557.10
Add to wishlist
Add to cart
Dual-channel function/arbitary waveform generator with 80 MHz max. output frequency, 1.2 GSa/s sample rate, 16 bits vertical resolution.
Bestseller
Availability in stock: HK
Shipping cost
ID: 862792 6 kg 110, 220
Signal Generator FNIRSI SG 003A
Bestseller
Add to wishlist
Signal Generator FNIRSI SG-003A
USD 47.00
Add to wishlist
Add to cart
Compact 1-channel digital signal generator in a protective silicone case. Generates square waveforms with a frequency range of 0.001 Hz - 180 kHz.
Bestseller
Availability in stock: HK
Shipping cost
ID: 902550 0.5 kg
25 MHz arbitrary waveform generator for SIGLENT SDS2000X Plus series digital oscilloscopes
Availability in stock: HK
ID: 894325 0.001 kg
16-channel logic analyzer software option for SIGLENT SDS2102X Plus, SDS2104X Plus, SDS2204X Plus, SDS2354X Plus digital oscilloscopes.
Availability in stock: HK
ID: 894326
FlexRay trigger and decode license for SIGLENT oscilloscopes of the SDS2000X Plus series.
Availability in stock: HK
ID: 894367 0.001 kg
MIL-STD-1553B trigger and decode license for SIGLENT oscilloscopes of the SDS2000X Plus series.
Availability in stock: HK
ID: 894368
CAN FD trigger and decode license for SIGLENT oscilloscopes of the SDS2000X Plus series.
Availability in stock: HK
ID: 894369 0.001 kg
I2S Trigger and Decode License SIGLENT SDS2000XP I2S
Add to wishlist
I2S Trigger and Decode License SIGLENT SDS2000XP-I2S
USD 269.00
Add to wishlist
Add to cart
I2S trigger and decode license for SIGLENT oscilloscopes of the SDS2000X Plus series.
Availability in stock: HK
ID: 894370 0.001 kg
Description

SIGLENT SDS2104X Plus is a desktop 4-channel Super Phosphor Oscilloscop with a 100 MHz bandwidth, a sample rate of 2 GSa/s, a maximum memory depth of 200 MB and a 10.1" display.

The Siglent SDS2104X Plus employs Siglent’s SPO technology with a maximum waveform capture rate of up to 120,000 wfm/ s (normal mode, up to 500,000 wfm/s in Sequence mode), 256-level intensity grading display function plus a color temperature display mode. It also employs an innovative digital trigger system with high sensitivity and low jitter.

Features

  • New generation of SPO (Super Phosphor Oscilloscope) technology.
  • Waveform capture rates up to 120,000 wfm/s (normal mode) and 500,000 wfm/s (sequence mode).
  • Supports 256-level intensity grading and color temperature display modes.
  • DigitaI trigger system.
  • Intelligent trigger: Edge, Slope, Pulse, Window, Runt, Interval, Dropout, Pattern and Video (HDTV supported).
  • SeriaI bus triggering and decoder, supports l2C, SPI, UART, CAN, LIN (Standard) and CAN FD, FlexRay, l2S, and MIL-STD- 1553B (optional) protocols.
  • Low background noise, features 0.5 mV/div to 10 V/div voltage scales.
  • Segmented acquisition (Sequence) mode, dividing the maximum record length into multiple segments (up to 90,000), according to trigger conditions set by the user.
  • History waveform record (History) function for up to 90,000 triggered waveforms (frames).
  • Automatic measurement function on 50+ parameters, supports statistics with histogram.
  • Abundant data processing and analysis functions such as Search, Navigate, Mask Test, Bode plot, Power Analysis (optional) and Counter.
  • Math measurement (2 Mpts FFT, +, -, x, ~, d/dt, f dt,f, average, ERES, and formula editor).
  • Multiple interfaces: USB 2.0 Host × 2, USB 2.0 Device, LAN, External Trigger, Auxiliary output (TRIG OUT, PASS/FAIL).
  • External mouse and keyboard support.
  • Built-in web server supports remote control over the LAN port using a web browser.
  • A waveform generator, a logic analyzer module and power analysis option for ripple and power quality measurements (optional).

Technical Specifications

  SDS2102X Plus SDS2104X Plus SDS2204X Plus SDS2354X Plus
Bandwidth 100 MHz 100 MHz 200 MHz 350 MHz
Analog channels 2 + EXT 4 + EXT 4 + EXT 4 + EXT
Sample rate 2 GSa/s (interleaving mode), 1 GSa/s (non-interleaving mode)
Memory depth 200 Mpts (interleaving mode), 100 Mpts (non-interleaving mode)
Waveform capture rate 120 000 wfm/s (normal mode), 500 000 wfm/s (sequence mode)
Trigger type Edge, Slope, Pulse, Window, Runt, Interval, Dropout, Pattern, Video and Serial
Vertical Resolution 8 bit, 10-bit mode (with typical 100 MHz bandwidth)
Serial triggering and decoding standard: I2C, SPI, UART, CAN, LIN
optional: CAN FD, FlexRay, I2C, MIL-STD-1553B
Math 2 traces
2 Mpts FFT, +, -, ×, ÷, d/dt, ∫dt, √, average, ERES, and formula editor
Automatic measurements 50+
Interface USB 2.0 Host × 2, USB 2.0 Device, LAN, External Trigger, Auxiliary output (TRIG OUT, PASS/FAIL)
Display 10.1" TFT-LCD with capacitive touch screen 1024 × 600
Dimensions 352 × 224 × 111 mm
Weight net weight: 3.9 kg
gross weight: 5.4 kg

Video

Youtube video

User Manual

PDF  Download SIGLENT SDS2104X Plus user manual.

Datasheet

PDF  Download SIGLENT SDS2104X Plus datasheet.

Package Contents

  • Digital Oscilloscope SIGLENT SDS2104X Plus — 1 pc.
  • USB Cable — 1 pc.
  • Passive Probe — 4 pcs.
  • Power Cord — 1 pc.
  • User Manual — 1 pc.
Specifications
Screen Size
  • 10.1" TFT display
Number of channels
  • 4-channel
Bandwidth
  • 100 MHz
Type
  • desktop
  • touch
  • phosphor
Sample Rate
  • 2 GS/s
Storage Capacity
  • 200 Mpts
Video
Youtube video
