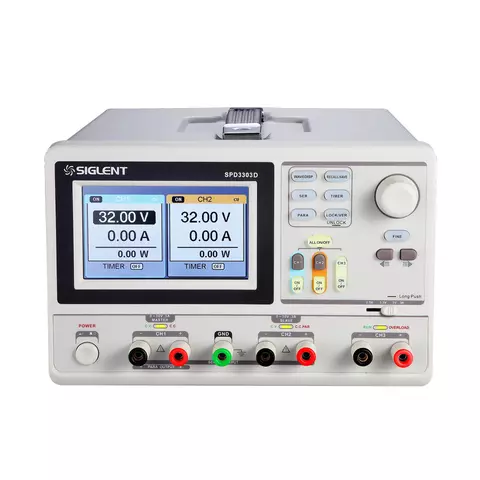

Siglent SPD3303D is a high-precision linear DC power supply.

Features

  • Separate control and independent triple outputs: 30V/3A*2, 2.5V/3.3V/5V/3A*1, total 195W power
  • 4 digits voltage and 3 digits current display, min resolution: 10 mV, 10 mA
  • Three output modes: independent, series and parallel connect; support timing output, waveform display
  • 4.3 inches TFT-LCD display with 480*272 high-resolution
  • 100V/120V/220V/230V compatible design, to meet the need of different grid
  • Smart temperature controlled fan, effectively reduce the noise
  • Save/Recall 5 group system specifications, support data storage expansion

Technical Specifications

Channels CH1:DC voltage range:0-30V,DC current range:0-3A
CH2:DC voltage range:0-30V,DC current range:0-3A
CH3:DC voltage range:2.5/3.3/5.0V,DC current range:0-3A
Max output power 195W
Min voltage/current resolution 10mV / 10mA
Voltage/Current display digits 4.3 inches TFT-LCD 480*272
4 digits voltage and 3 digits current display
Ripple noise ≤1 mVrms(5Hz~1MHz)
≤3 mArms
Standard interface USB Device
Dimensions 210 mm(W)×130 mm(H)×265 mm(D)
Weight 7 kg
Specifications
Type
  • transformer
  • programmable
Number of channels
  • three-channel
Max. Voltage
  • up to 30 V
Max. Current
  • up to 3 A
Indicator type
  • 4.3" color LCD display
