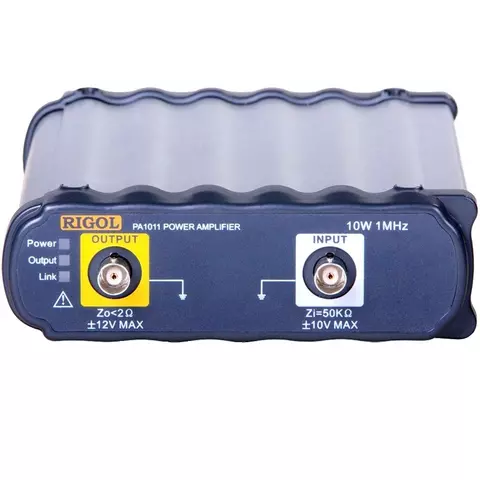

Waveform Generator Signal Power Amplifier RIGOL PA1011

RIGOL PA1011 is a USB controlled, 1MHz, 10W power amplifier for Rigol DG series function / arbitrary waveform generators. The PA1011 can be controlled using a PC running the RIGOL PA1000 application or via the front panel of a compatible function / arbitrary waveform generator, such as the RIGOL DG1022 or DG5000 series function / arbitrary waveform generators.

Features

• Communication with  DG and PC software through the USB interface.
• Enables to set the Gain (x1 or x10), Polarity (Invert or Normal), Output  offset  and  the  output  status  in  connection  with  its software.
• Up to 50 kΩ output impedance.
• The integrated output protection circuit (overcurrent protection and  internal  temperature  abnormal  protection) ensures the instrument is working stably and safely.
• Compact size, easy to carry and use.

Compatibility

• RIGOL DG1012
• RIGOL DG1021
• RIGOL DG1022
• RIGOL DG1032Z
• RIGOL DG1062Z
• RIGOL DG2021A
• RIGOL DG2041A
• RIGOL DG3061A
• RIGOL DG3101A
• RIGOL DG3121A
• RIGOL DG4062
• RIGOL DG4102
• RIGOL DG4162
• RIGOL DG5071
• RIGOL DG5072
• RIGOL DG5101
• RIGOL DG5102
• RIGOL DG5251
• RIGOL DG5252
• RIGOL DG5351
• RIGOL DG5352
