Digital Oscilloscope SIGLENT SDS1072CML+

No results found for your request.
ID: 869145 5.1 kg
Availability in stock: HK
Warranty: 24 month (s)
Bestseller

USD 280.00
In stock
Add to cart
+ Gift

2-channel digital oscilloscope with 70 MHz bandwidth, 1 GSa/s real-time sample rate, and 50 GSa/s equivalent sample rate, 2 M memory, LAN interface.
  • Overview
  • Specifications
  • Video
  • Delivery
  • Payment
  • Warranty

Overview

SIGLENT SDS1072CML+ digital oscilloscope is a desktop dual-channel digital oscilloscope with a 70 MHz bandwidth. 7-inch color LCD of the oscilloscope ensures bright and vivid waveform representation and backlit buttons ensure user comfort. SIGLENT SDS1072CML+ has a multi-language user interface and online help.

SIGLENT SDS1072CML+ digital oscilloscope is a good choice for industrial control and measurements, R&D, electronic circuit design and testing and all other applications involving testing and troubleshooting, as well as education and training.

Features

  • Bandwidth: 70 MHz
  • 2 channels + 1 external triggering channel
  • Real-time sample rate: 1 GSa/s
  • Equivalent sample rate: 50 GSa/s
  • Memory depth: 2 Mpts
  • Vertical sensitivity range: 2 mV/div – 10 V/div
  • Versatile trigger modes: Edge, Pulse, Slope, Video and Alternate
  • 7" TFT color LCD
  • Backlit buttons
  • Unique digital filter and data recorder function
  • USB host, USB device, LAN
  • Pass/Fail Output
  • Multi-language menu (12 languages)
  • Online help
  • Compact design for saving desktop space.

Technical Specifications

Model SDS1052DL+ SDS1072CML+ SDS1102CML+ SDS1152CML+
Bandwidth 50 MHz 70 MHz 100 MHz 150 MHz
Channels 2 + 1 external triggering channel
Real time sample rate 500 MSa/s (single channel)
250 MSa/s (dual channel)
1 GSa/s (single channel)
500 MSa/s (dual channel)
Equivalent sample rate 50 GSa/s
Memory depth 32 Kpts 2 Mpts
Vertical sensitivity range 2 mV/div – 10 V/div
Vertical resolution 8 bits
Rise time ≤7 ns
Time base range 10 ns/div – 50 s/div
Input impedance 1 MΩ || 17 pF
Cursor measurements Manual, Track, Auto measure
Math Add, Subtract, Multiply, Divide, FFT
Trigger types Edge, Pulse, Video, Slope, Alternate
Input coupling DC, AC, GND
General Characteristics
Display 7" TFT color LCD (800×480)

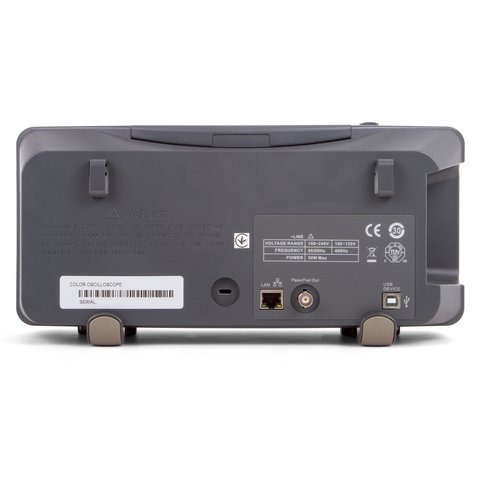

Interface USB host, USB device, LAN, P/F output
Power source AC 100 ~ 240 V, 47 ~ 440 Hz, 50 VA Max
Max. input voltage 1 MΩ 17 pF 400 V (DC + PK-PK) CATI, CATII
Dimensions 305 × 133 × 154 mm
Weight 2.5 kg

Video

We introduce the video review of SIGLENT SDS1000 series of oscilloscopes on the example of SIGLENT SDS1102CML Digital Oscilloscope.

You'll find even more video reviews in the Video tab. Go and check it out!

Data Sheet

PDF  Download SIGLENT SDS1072CML+ Data Sheet.

User Manual

PDF  Download SIGLENT SDS1072CML+ User Manual.

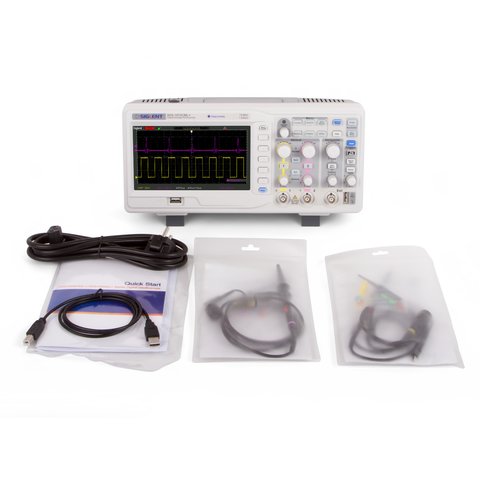

Package Contents

  • SDS1072CML+ digital oscilloscope — 1 pc.
  • Probes — 1 pair
  • Power cable — 1 pc.

Specifications

Type
  • desktop
Number of channels
  • dual-channel
Bandwidth
  • 70 MHz
Sample Rate
  • 1 GS/s
Screen Size
  • 7.0" TFT display
Storage Capacity
  • 2 MB
