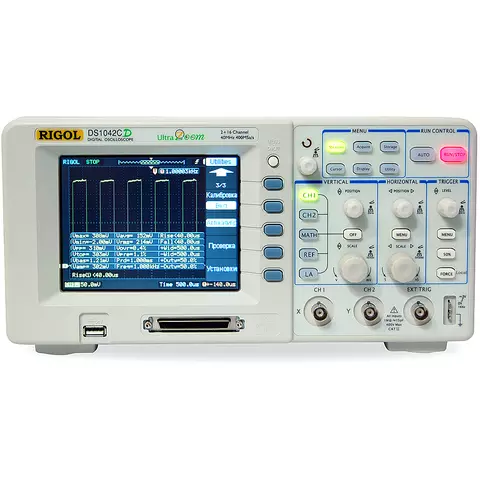

Rigol DS1042CD Mixed Signal Oscilloscope

• A true Mixed Signal Oscilloscope with 2 analog and 16 digital channels
• Ultra compact design, small dimensions, to save your desktop space
• 5.7’ 64K TFT color LCD, bright and vivid waveform display
• Memory depth: 1M points (Single Channel), 512K points(Dual Channels), 512K points (Logic Analyzer)
• Versatile trigger modes: Edge, Video, Pulse Width, Slope, Alternative, Pattern and Duration
• Adjustable trigger sensitivity: Filters noise from the trigger signal to avoid false triggers
• 400 MSa/s maximum real-time sample rate and 25 GSa/s maximum equivalent time sample rate
• 20 automatic measurements
• Cursor measurements: Manual, Track and Auto Measure Modes
• 10 waveforms, 10 setups, BMP and CSV storage
• Math functions: Add, Subtract, Multiply, FFT, Invert
• Automatic self calibration
• Special digital filter and waveform recorder
• Built-in hardware frequency counter
• Dual channels plus external trigger
• Standard interface: USB Device, RS-232;USB Host, to support USB flash memory and USB printer
• Standard Configuration includes Pass/Fail testing
• Multi-language user interface, built-in help system

LOGIC ANALYZER FOR RIGOL DS1042CD

Mixed Signal Oscilloscope (MSO) with 16 channels Logic Analyzer (LA). LA is divided into two groups: D7-D0, D15-D8. Each works separately.
Logic Analyzer Module	Pattern Trigger The trigger condition is a combination of the level of the signal and the edge	Duration Trigger A combination of Pattern Trigger and Pulse Width Trigger capabilities make isolation of events

SPECIFICATION OF RIGOL DS1042CD

VERSATILE TRIGGER MODES OF RIGOL DS1000 SERIES

Adjustable Trigger Sensitivity The ability to filter noise from the signal avoids false triggers	Alternative Trigger Provides a true dual time base display that was common in analog oscilloscopes	Slope Trigger Triggers on the signals rise time or fall time that is user defined	Rise Edge and Fall Edge Trigger Mainly used to view eye-diagrams formally only available in more advanced DSO’s

COMMON PARAMETERS FOR RIGOL DS1000 SEREIS

Vertical Sensitivity	2 mV/div to 10 V/div
Vertical Resolution	8 bits
Input Coupling	DC, AC, Ground
Maximum Input Voltage	300 V (DC + AC peak)
Roll Range	500 ms/div to 50 s/div
Automatic Measurements	Vpp, Vamp, Vmax, Vmin, Vtop, Vbase, Vavg, Vrms, Preshoot, Overshoot, Frequency, Period, Rise Time, Fall time, Positive Width, Negative Width, Positive Duty Cycle, Negative Duty Cycle, Delay1<2, Delay 1> 2
Cursor Measurements	Manual, Track and Auto Measure modes
Math	Add, Subtract, Multiply, FFT, Invert
Storage	Internal:10 Waveforms and Setups
	USB:BMP, CSV, Waveforms and Setups
I/O	USB Device,USB Host,RS-232,P/F Out (Isolated)
Display	TFT (64K, Color LCD), 320 x 234
Power	Worldwide Use, 100 – 240 V / 50 VA Max
Weight	2.3 kg

STANDARD ACCESSORIES FOR RIGOL DS1042CD

Power Cord	USB Data wire	Probe × 2	User Manual

Logic Analyzer Module	Logic Analyzer Clips	Data Connection Cable
